Home » Product » Porcelain lamp holder » Medium ES screw e26 ceramic light socket 005

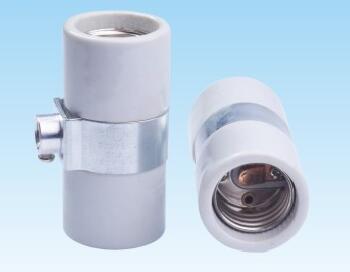

Medium ES screw e26 ceramic light socket 005

Medium ES screw  e26 ceramic light socket:
Model No: JS-E26-005
Voltage: 250V
Power: 660W
Nickel-plated copper screw shell and center contact
With AWM 1015 18AWG 105°C 600V black and white wires
Standard length of wires: 16.5cm, wires can be made according to the customer's request
Packing: 400pcs/1ctn
Gross weight: 18kg
Net weight: 17kg
Dimensions: 38 x 31 x 25cm
HS code: 85366100.00
high quality ceramic light socket with best sales service and rich export experience.

Product Description

Medium screw ceramic light socket domensions are 45mm high by 40mm wide (26mm screw).
Unglazed porcelain body on medium screw e26 with threaded male,
threaded female or rivet type brackets.
Standard lead types are AWM 18 gauge 105,125, 150,
plastic insulated wire.
(Bare copper ground wire available upon request.)
Standard screw shells are aluminum.
(Brass and nickel plated brass available at extra cost.)
Bracket types available,
Standard packed 200 to a carton.
Spring center contact
Keyless, commercial grade, rated 660W/250V
E26 ceramic light socket- fits led & incandescent bulb bases
Straight body with screw terminals on bottom
Dimensions: 1.5" overall diameter ("A" dimension in diagram); 2-1/16" overall height;and 1.69" body height
0.03" insulating washer
1/8 IPS threaded metal cap (27tpi)
