Home » Product » Bakelite & Brass Lamp holder » E12-D04 screw bakelite lamp socket America standard

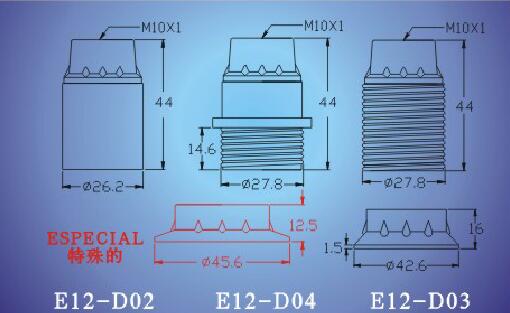

E12-D04 screw bakelite lamp socket America standard

Model:E12-D04 screw bakelite lamp socket  America standard
Serie:E12 bakelite Lamp holder (America (U.S.A and Canada) standard)
Rated:110-125V,75W
Colour:Black
Cable section: 0.5mm²-1.5mm²
Terminal: Screw terminal ø3mm
Components Details: 1 Shade ring, 1 Insert, 1 Half threaded Skirt, 1 Cap with threaded metal (or bakelite) entry M10×1.
(Total 4 Parts)

Product Description

E12 bakelite lamp holder Candelabra (US), 12mm diameter, typically found on night light bulbs, chandelier bulbs,
The metal screw itself forms one of the contacts for the circuit. If the lighting system is not correctly wired, or a lamp is plugged into a non-polarized outlet, the metal screw can become energized, presenting an electric shock hazard to anyone attempting to change the lamp.


E12 bakelite lamp sockets are more suitable for small size bulbs
A bulb fully screwed home is more secure than a bayonet fit bulb
Moisture and debris is less likely to contaminate the contacts of a screw base bulb.
