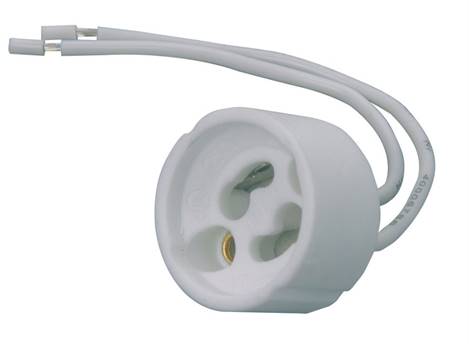

Gu10 led light bulb socket base holder with wire

gu10 led light bulb socket base holder with wire and Heat Resistant Cable
GU10 lamp holder for LED Halogen Lamps with connection box and mounting bracket.
Material: Ceramic, white or ivory color
Ceramic gu10 lamp holder base with terminal block
Fittings terminal box, gu10 socket extension, wire
Wire: Silicone, Teflon cable, 0.5mm2 or 0.75mm2, length as your requests
Rated Voltage: 250(V)
Rated Current 4(A)
Wire material Silicon, braid
MOQ: 600PCS
GU10 / GZ10 Lamp Holder Ceramic with Bracket/ 100W / 180mm 0.75mm2 Single Insulated
Silicone Wire (VDE) with Second Heat Resistant Outer Sheath / Supplied with Terminal
Block for Connection / T250 Degrees

Product Description

JAMES gu10 led light bulb socket base holder with wire types:
0.75m2 silicon rubber braided wire 15cm,
0.5m2 silicon rubber braided wire 15cm,
0.3m2 silicon rubber braided wire 15cm,
0.75m2 silicon rubber wire 15cm,
0.5m2 silicon rubber wire 15cm,
0.3m2 silicon rubber wire 15cm,
0.5m2 braided wire 15cm.
We offer modifications such as mounting brackets, reflectors and other hardware, upon your request.

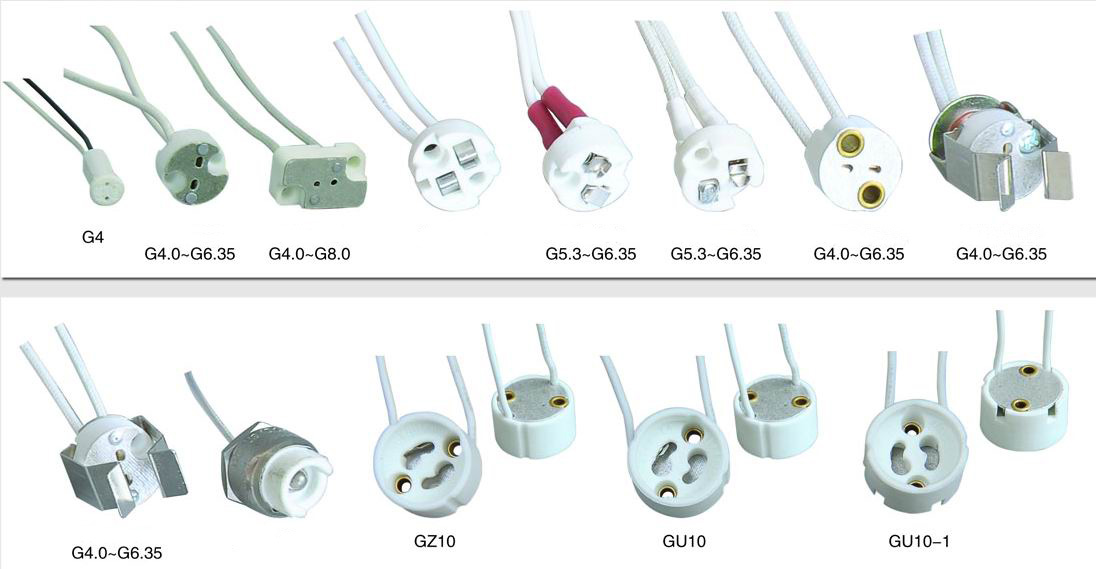

The "G" base type of lamp and light bulb is used to designate a "pinned" base. This can include several pin types and different numbers of pins.
Designation is by letter(s)-numbers-optional letter: The first letters include "G" followed by an optional U, X, Y or Z. Next is a number that designates the number of millimeters between the center of each pin. Finally the optional final letter designates the number of pins, no letter implies 2 pins as does a d for double. Pin number designations include: s : Single, d : Double, t : Triple for 3 pins and q : Quadruple for 4 pins.


Examples include: GU10 lamp holder (Ceramic lamp fitting for standard GU10 bulb
Suitable for LED, CFL and Halogen
Use this to fit any GU10 bulb into a hard wire system.
It allows you to plug in your LED, CFL or Halogen bulb, and attach it to the normal lighting wire.
Length of the Leads:About 8.5cm), G24q base type, or for T8 tubes G13 bi-pin.
